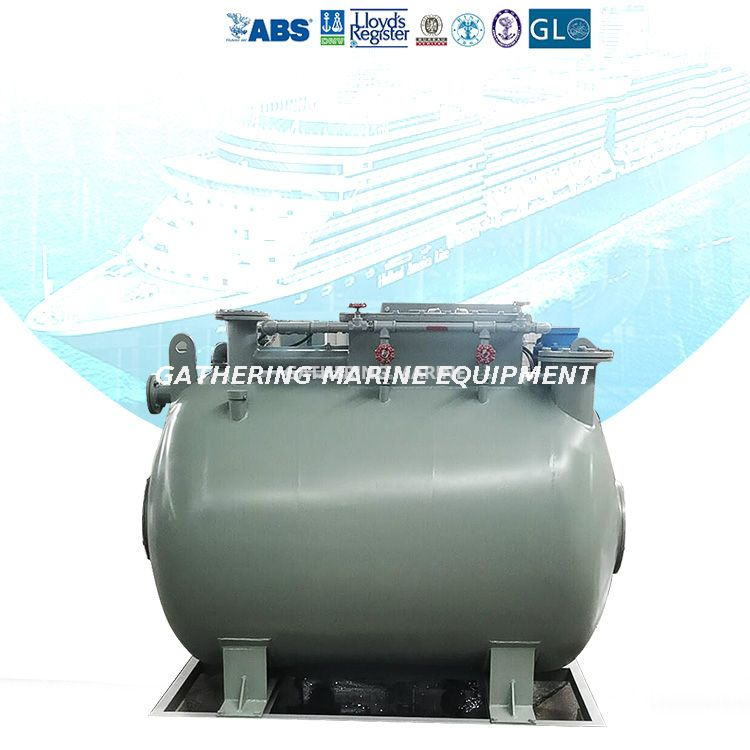

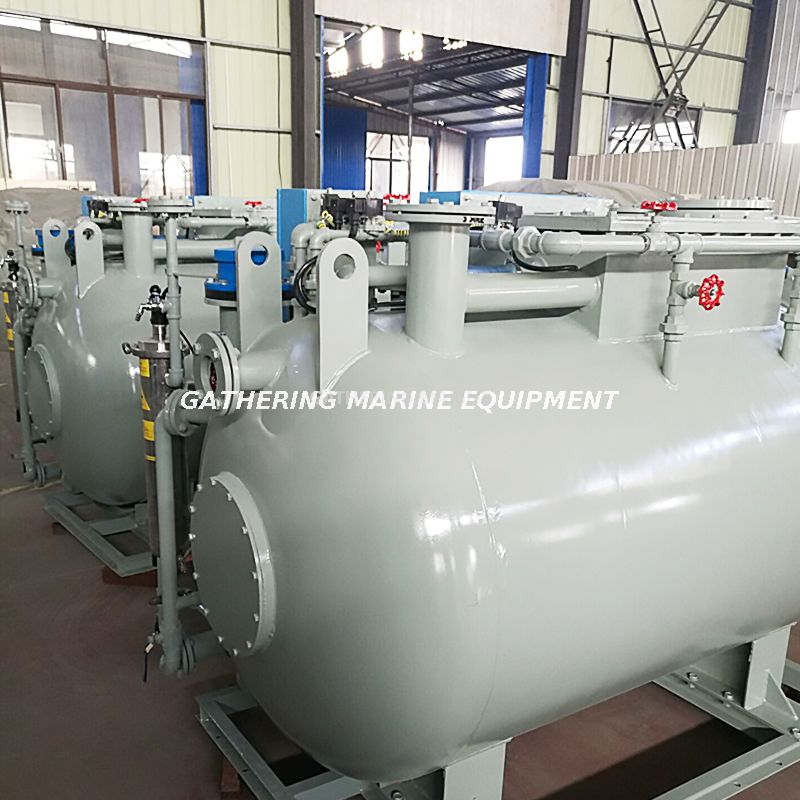

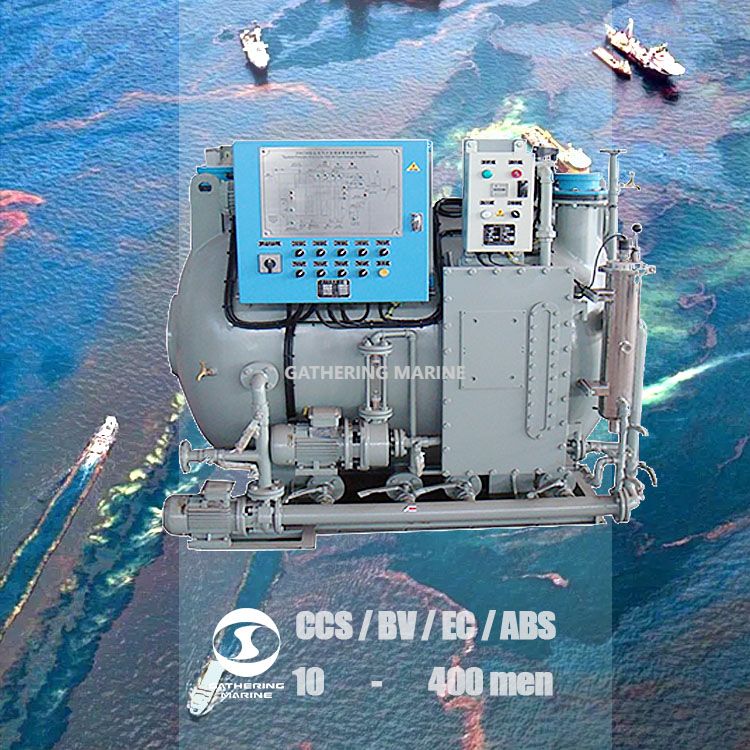

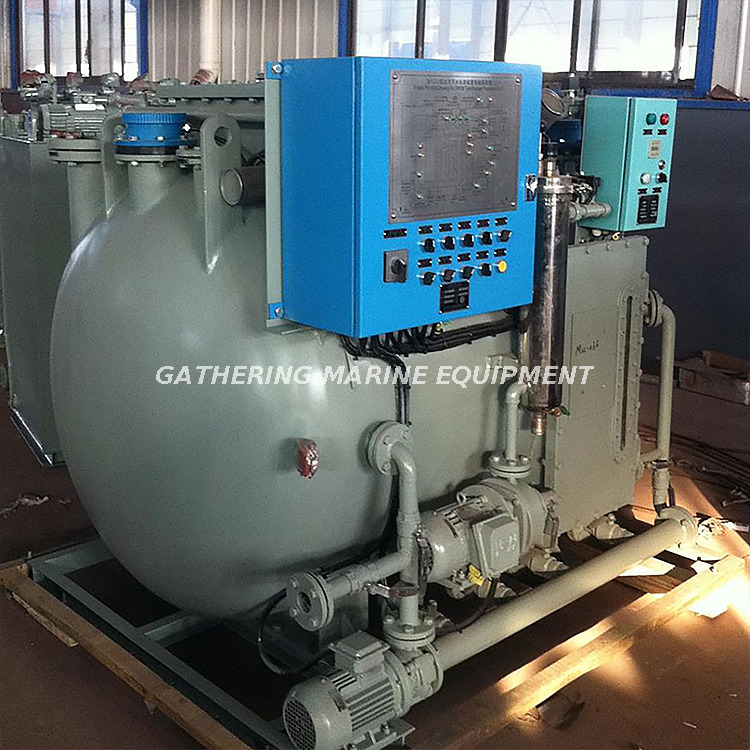

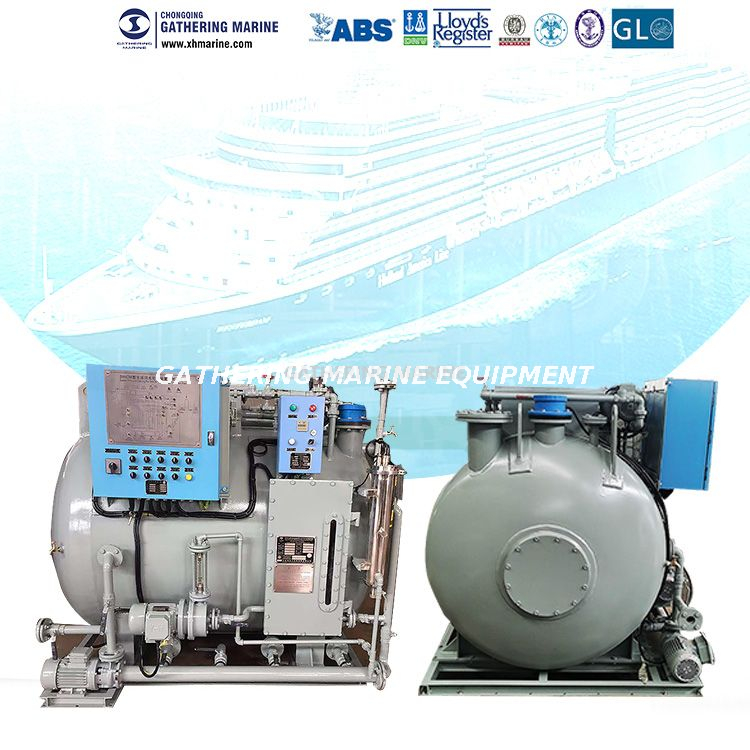

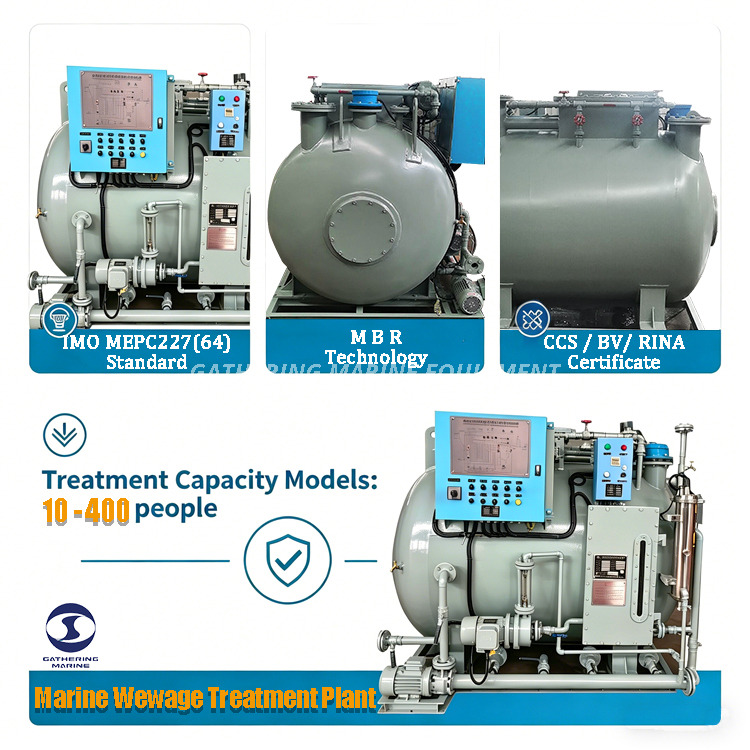

Meereskläranlage
Neuer Standard
IMO.MEPC.159(55) | IMO.MEPC.227(64) | |
TSS (mg/l) | 35 | ≯35Qi/Qe |
BSB5 (mg/l) | 25 | ≯25Qi/Qe |
CSB (mg/l) | 125 | ≯125Qi/Qe |
Escherichia coli (Stück/100ml) | 100 | 100 |
PH | 6~8,5 | 6~8,5 |
Restchlor (mg/l) | <0,5 | <0,5 |
Ammoniakstickstoff | NR | NR |
Gesamtstickstoff | NR | 20 mg/l Qi/Qe mg/l oder mindestens 70 % Reduktionsrate |
Gesamtphosphor | NR | 1,0 mg/l Qi/Qe mg/l oder mindestens 80 % Reduktionsrate |

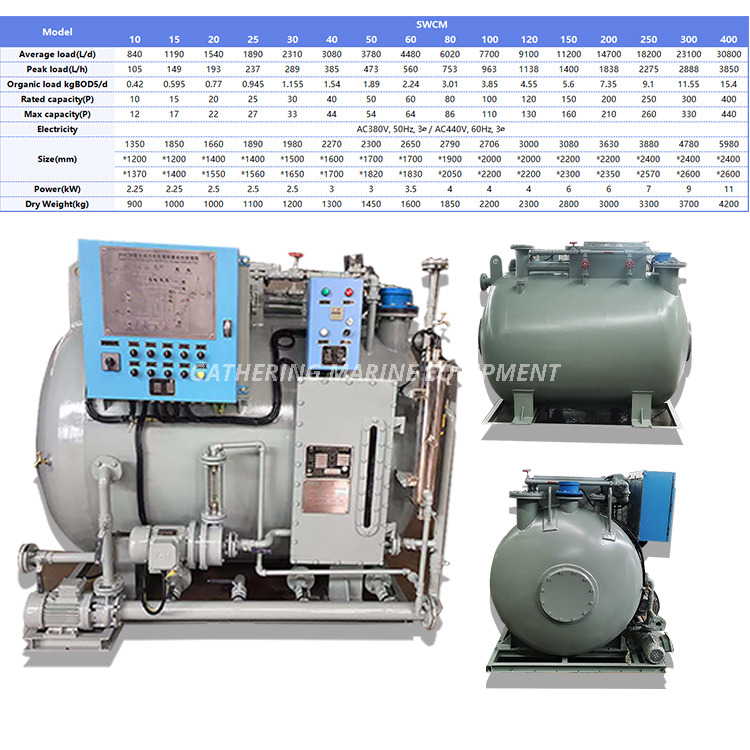

Produktmodell
Modell | SWCM | |||
15 | 20 | 25 | 30 | |
Durchschnittliche Belastung (L/d) | 1190 | 1540 | 1890 | 2310 |
Spitzenlast (l/h) | 149 | 193 | 237 | 289 |
Nennkapazität (P) | 15 | 20 | 25 | 30 |
Außenmaße (mm) | 1850x1200x1400 | 1660x1400x1550 | 1890x1400x1560 | 1980x1500x1650 |
Gewicht | 1000 | 1000 | 1000 | 1200 |
Weitere Stile, kontaktieren Sie uns bitte für weitere Details
